Orjinal Tcyo Raychem TE Amp Commscope Gpon Ürünüdür.
TURKCELL-TELEKOM-VODAFONE ONAYLI
24 kasetli, her kasette 12 ek sonlandırma kapasitesi 288 lik kablolar için En ideal üründür.
845110-000 | FIST-GCO2-BC6-GV

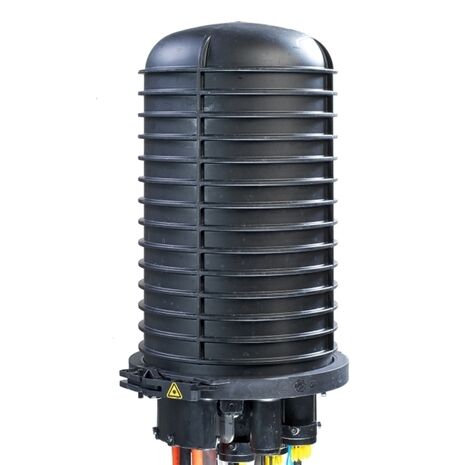

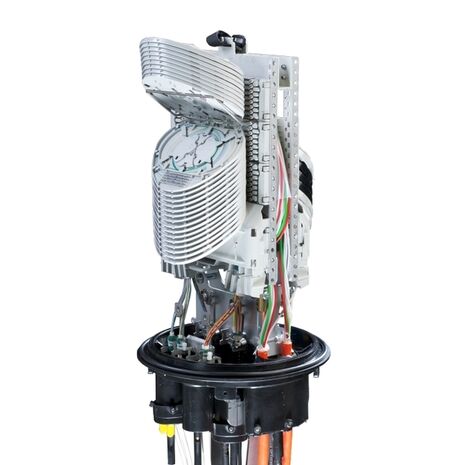

FIST® GC02 Fiber Optic Splice Closure, Heat Shrink Cable sealing, size BC, no pre-installed fiber trays, 6 ports with test valve
Specifications
Product Classification
| Regional Availability | EMEA |
| Product Type | Single-ended, round fiber closure |
| Product Brand | FIST® |
| Product Series | FIST-GCO2 |
General Specifications
| Cable Entry Drop Port Style | Round |
| Cable Entry Main Port Style | Oval |
| Cable Ports, quantity | 7 |
| Cable Sealing Type | Gel kit (optional) | Heat shrink |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Mounting | Pole | Strand | Wall |
| Network Area Type | Distribution |
| Splice Tray Included, quantity | 0 |
| Splicing Capacity, Mass Fusion, maximum | 224 |
| Splicing Capacity, Single Fusion, maximum | 336 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 336 |
| Splicing Capacity, Single Splice, 2 fibers, maximum | 112 |
Dimensions
| Length | 488 mm | 19.213 in |
| Cable Entry Drop Port Diameter | 30 mm | 1.181 in |
| Diameter | 247 mm | 9.724 in |
| Diameter, with clamp | 285 mm | 11.22 in |
| Main Cable Diameter, maximum | 25 mm | 0.984 in |
| Cable Entry Main Port Dimensions | 30 mm x 82 mm (1.18 in x 3.23 in) |
Dimension Drawing
| Click on image to enlarge. |  |
Ordering Tree
| Click on image to enlarge. |  |
Material Specifications
| Material Type | Impact-resistant polymer |
Environmental Specifications
| Environmental Space | Below ground | Buried |
| Qualification Standards | IEC 61300, 5 m waterhead |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| Weight, net | 3.9 kg | 8.598 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015  |
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS  |
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
