Hpe 455885-001 10Gb Sr Sfp+

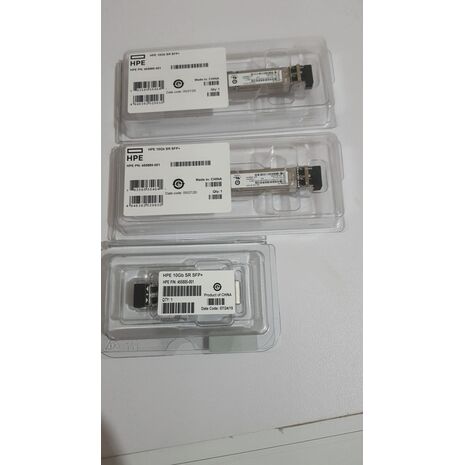

Orginal HPE 455885-001 c-Class 10Gb SFP+ SR Transceiver Module

A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit SR standard, providing 10-Gigabit connectivity up to 400m on OM4 multi-mode fiber.

10Gb Ethernet transmission rate with SFP+ form factor
Transmissions are up to 300m on MMF (SR), up to 220 m MMF (LRM) and 10 km on SMF (LR)
Low power consumption at <0.8W for SR, <1W for LRM and LR
Duplex LC connector

The HPE 455885-001 is an Plug-in Module form Factor Transceiver module supporting the 1 x Ethernet 10GBase-SR - LC multi-mode x 2 standard. The 455885-001 is hot pluggable and has a 1 x Ethernet 10GBase-SR - LC multi-mode x 2 interface. The transceiver provides speeds of 10 Gbps on 10 Gigabit Ethernet connections up to 1 x SFP+ and comes with 3 Years Warranty.

Specification

Brand: HPE
MPN: 455885-001

Option Part Number: 455883-B21
Spare Part Number: 456096-001
Assembly Number: 455885-001

General

Device Type: SFP+ Transceiver Module
Form Factor: Plug-in Module
Transceiver Form Factor: SFP+

Networking

Connectivity Technology: Wired
Cabling Type: 10GBase-SR
Data Link Protocol: 10 Gigabit Ethernet
Data Transfer Rate: 10 Gbps
Max Transfer Distance: 980 ft
Ports: 1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-SR), Duplex: full only
Connector Type: LC
Wavelength: 850 nm
Cable type: 62.5/125 um or 50/125um (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC793-2Type A1b or A1a, respectively
Fiber type: Multi Mode
Maximum distance: 2-26m with 62.5 ?m multimode cable @ 160 MHz*km 2-33m with 62.5 ?m multimode cable @ 200 MHz*km 2-66m with 50 ?m multimode cable @ 400 MHz*km 2-82m with 50 ?m multimode cable @ 500 MHz*km 2-300m with 50 ?m multimode cable @ 2000 MHz*km

Expansion & Connectivity

Interfaces: 1 x Ethernet 10GBase-SR - LC multi-mode x 2
Compatible Slots: 1 x SFP+

Product Dimensions & Weight

Width: 0.54 inch (1.38 cm)
Height: 0.47 inch (1.19 cm)
Depth: 2.19 inch (5.57 cm)
Weight: 0.04 lbs (0.02 kg)
