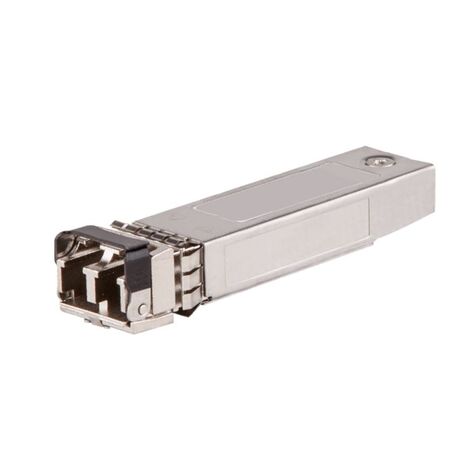

HPE Aruba J9153D Orginal 10GBASE-ER SFP+ Transceiver Module (SMF, 1550nm, 40km, LC, DDM)
This 10GBASE-ER SFP+ module is equivalent to HPE Aruba J9153D 10G SFP+ LC ER 40km SMF Transceiver. This HPE Aruba J9153D supports data-rate of 10.3125Gbps (10GBASE-ER), providing 10-Gigabit connectivity for up to 40 km over single mode fiber cable. This SFP+module is programmed and tested at the factory, to ensure it works with HPE Aruba 10GbE Switches, Routers, and network card, and performing identically to an Aruba original optical transceiver.
Features
• Functionally identical to HPE Aruba J9153D 10G SFP+ LC ER 40km SMF Transceiver
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
• 1550nm EML transmitter, PIN photo-detector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free
Specification
| SKU Part Number | J9153D | ||
| Form Factor | SFP+ | Data Rate | 10Gb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | EML/PIN |
| Transmitter Power | -2 ~ 3 dBm | Extinction ratio | > 6 dB |
| Receiver Sensitivity | < -16 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 10GBASE-ER/10GBASE-EW Ethernet 10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
