Cisco Orjinal QSFP-40/100-SRBD Cisco 100G And 40GBASE Sr-Bidi Qsfp Transceiver, Lc, 100M Om4 Mmf

ORJINAL Cisco QSFP-40/100-SRBD KUTUSUNDA SIFIR & GARANTİLİ , ADINIZA FATURALI.

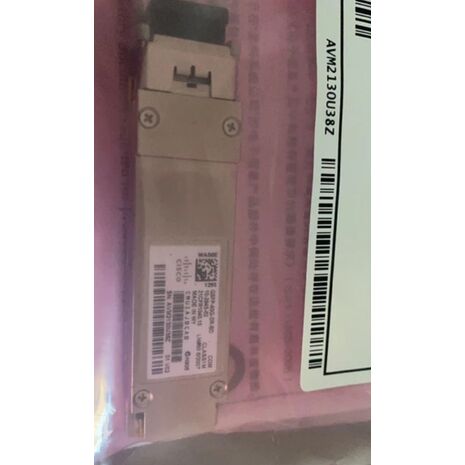

Cisco QSFP-40/100-SRBD

The Cisco QSFP 40/100 Gb dual-rate Bi-Directional (BiDi) transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to either 40 or 100 Gigabit Ethernet connectivity.

In 40-Gbps mode, the Cisco QSFP 40/100-Gbps BiDi transceiver supports link lengths of 100 and 150 meters on laser-optimized OM3 and OM4 multimode fibers, respectively. In 100-Gbps mode, it supports 70 and 100 meters on OM3 and OM4, respectively.

Each Cisco QSFP 40/100-Gbps BiDi transceiver consists of two transmit and receive channels in the 832-918 nanometer wavelength range, enabling an aggregated 40 or 100-Gbps link over a two-strand multimode fiber connection.

Table 2.           Link loss budget for QSFP-40/100-SRBD and QSFP-100G-SR1.2

^*Includes 1.5dB connector loss.
^**Includes 1.0dB connector loss.
^***In 40G mode, QSFP-40/100-SRBD has 0.7 decibel incremental margin (in addition to 1.9 decibel total loss budget shown in the table), which can be allocated to connector losses in the link for OM3 fiber for applications when a link BER of 1E-12 is sufficient. Cisco recommends that this margin be allocated to connector losses. Care should be taken to not exceed 120 meters in fiber link distance with the OM3 fiber.
^****Does not include QSFP-100G-SR1.2 which is 100G only.

Ürün özellikleri
Garanti Süresi (Ay)
24
